Wi-Fi 7 Series
FEM 62371H
Ultra-High Performance 2.4-2.5GHz RF Front-End Module
Ultra-High Performance 2.4-2.5GHz RF Front-End Module
The Wi-Fi 7 FEM 62371H represents the pinnacle of 2.4GHz RF front-end technology, specifically optimized for the demanding requirements of the IEEE 802.11be (Wi-Fi 7) standard. This "H" variant is engineered for enhanced performance, providing increased output power and market-leading linearity to facilitate ultra-fast data transmission and superior network stability.

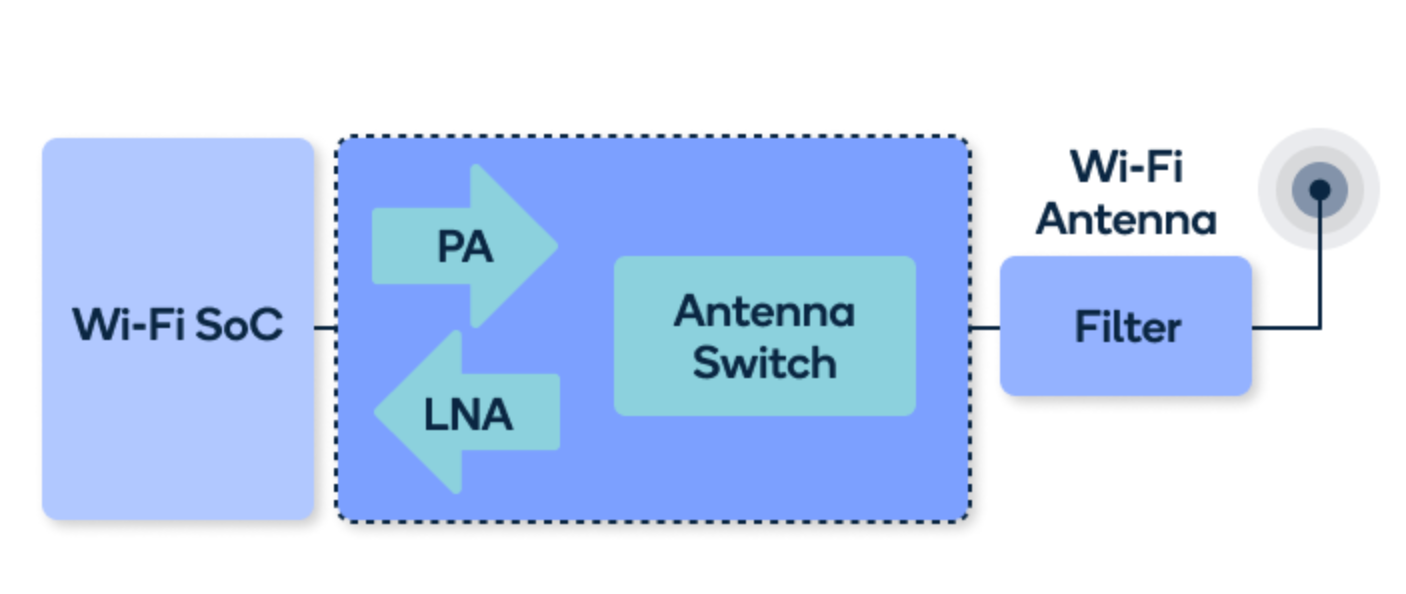

By integrating an advanced power amplifier with a high-sensitivity low-noise amplifier, the 62371H ensures exceptional range and reliability. It is perfectly suited for high-tier access points and routers that utilize 4096-QAM (MCS13) and EHT40 channel widths, delivering a consistent -45 dB Dynamic EVM for the most critical wireless applications.
Delivers a robust 17.5 dBm output power, specifically optimized for extended 2.4GHz coverage.
Maintains a superior -45 dB DEVM, providing the signal purity required for 4096-QAM (MCS13).
Fully supports EHT40 and MCS13 for next-generation wireless throughput and efficiency.
State-of-the-art architecture combining high gain PA and low noise LNA in a small footprint.
Typical performance at room temperature 25°C.
| Parameter | Specification / Condition |
|---|---|
| Frequency Range | 2.4 – 2.5 GHz |
| Output Power (Pout) | 17.5 dBm @ MCS13 EHT40 |
| Dynamic EVM (DEVM) | -45 dB (Typical) |
| Standard Compliance | 802.11be (Wi-Fi 7) |
| Modulation Support | MCS0 – MCS13 (4096-QAM) |
| Bandwidth Support | Up to EHT40 |
